SHRINK FIT MACHINE MODELS

Two shrink fit machines with cylindrical holders and metallic surfaces are shown. One device has a control panel with buttons and a digital display. Both have multiple slots holding colored containers or cups.Shrink fit machines allow manufacturers to properly heat toolholders without overheating, easily and safely remove broken tools, and minimize downtime for service and repair due to a slide out control module.

Lyndex-Nikken offers two shrink fit machine models: Start.2 is an entry level shrink fit machine that is compact and lightweight, and the FI-6 shrink fit machine is ideal for shops doing high changeovers for production setups. Both models feature:

High-Speed Shrinking

High-speed shrinking for most shank sizes in 2 seconds.

Eliminate Toolholder Overheating

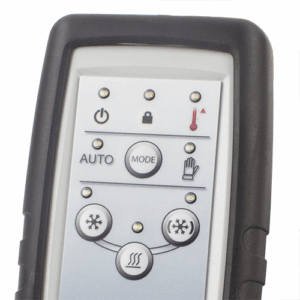

An Fi6 Shrink Fit pendant with buttons and indicator lights. The buttons include power, lock, temperature, auto, mode, hand, fan, and heat functions. The pendant is bordered by a black frame.Automatic detection of cutting tool sizes to eliminate overheating of the toolholder.
Easily Remove Broken Tools

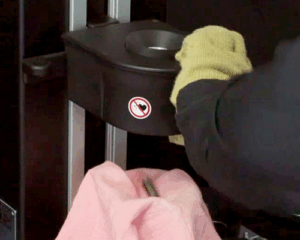

A person wearing thick yellow gloves is holding a metal object near a shrink fit machine inductor. A pink cloth covers part of the scene.Inductor rotates 180° to easily remove broken tools.
Safety First

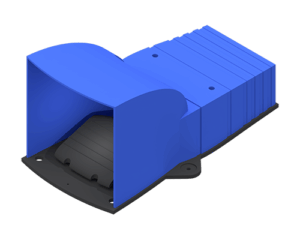

A blue and black plastic foot pedal device with a protective blue cover and ribbed surface, mounted on a flat black base. The design appears industrial, with screws visible on the top section.Optional foot pedal allows heating of tool while keeping both hands free for safety and more control.

Shrink Any Type of Tools and Cutters

Shrink and unshrink any type of tools and cutters – tool shank must have h6 tolerance.

Adapters for Taper Types

Adapters to accommodate multiple taper types (ISO, HSK, Polygonal).

Widest Shrinking Range

Widest shrinking range available for a desktop unit: 0.079” – 1.575” (Ø 2 – 40mm).

Remote Control Pendant

Remote control pendant – shrink and cooling unit linked and controlled with one pendent.

3-Phase Power Supply

3-Phase power supply available in 200V or 400V – no transformer needed.

Easy Service or Repair

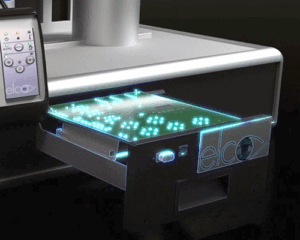

A close-up of an Fi6 Shrink Fit Machine with a glowing circuit board partially ejected from a compartment. The device has a control panel on the left and the brand name elco is visible on the front.
Unique slide-out control module for easy service or repair within 24 hours.

Additional features specific to each shrink fit machine model are listed below.

START.2 SHRINK FIT MACHINE

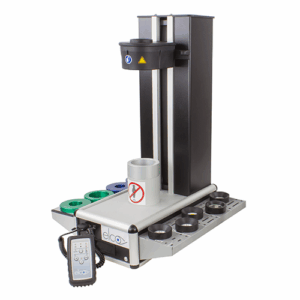

A Start 2 Shrink Fit Machine with a vertical column, adjustable arm, cylindrical holder marked with a no-hand symbol, several multicolored rings, and a connected remote control rests on a white background.With a compact and ergonomic design, it is easy to operate. Features include:

  • Easy mobility due to compact size and lightweight materials
  • Operate up to 2 cooling units simultaneously (2nd unit is an optional purchase)
  • Maximum tool height: 12.4” (315mm)
  • Shrink machine unit net weight: 41.9 lbs. (19 kg)
A person operates a shrink fit system machine in a workshop. The words SHRINK FIT SYSTEM appear on the left, and Watch Video is written at the bottom. A play button icon is centered over the image.Watch the video to learn more about the Start.2 shrink fit machine.
Screenshot of a video titled Shrink Fit System Getting Started showing an industrial shrink fit machine against a blue background, with a play button icon overlay and the text Watch Video below.If you have already purchased a Start.2 and need to know how to set up your Start.2 shrink fit machine and use it, watch this video.

FI-6 SHRINK FIT MACHINE

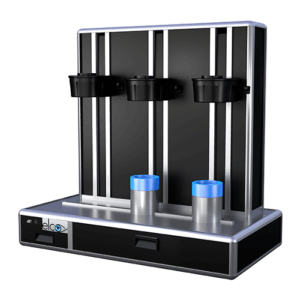

An Fi6 Shrink Fit Machine with three black inductors at the top and two blue-capped cylindrical containers at the bottom.Built for high changeover demands and designed with safety in mind, this robust shrink fit machine has one heating unit and two cooling towers combined into one machine. A moveable pot enables better safety, so the operator does not have to touch the heated toolholder. Shrink fit machine features include:

  • Two built in cooling units to support high quantity tool assembly – allows you to cool a toolholder while heating a second tool
  • Maximum tool height 17” (432mm)
  • Shrink machine net weight (options excluded): 143.3 lbs. (65 kg)
A machine labeled LYNDEX-NIKKEN FI-6 SHRINK FIT UNIT with a play button overlay is shown against a dark background. Text below the image says Watch Video.Watch the video to learn more about the FI-6 shrink fit machine.
